Help : Where is SQL Server ErrorLog?

Posted by blakhani on June 26, 2011


While helping unknown faces via MSDN SQL Server Forum, I have asked many times to share the “SQL Server ErrorLog”. Most of the time, I need to explain where the ErrorLog(s) are located. so this post is to help those who are new to SQL Server. Well, if you ever call Microsoft SQL Support for any problem with SQL, they (including me) would ask SQL ErrorLog.

You may ask “What is ErrorLog file?”
SQL Server maintains its own error logs that contain messages describing informational and error events. I personally don’t like name of the file “ErrorLog” as this file does not contains only errors, it also contains information messages. This is the reason we have added additional text in information message called “This is an informational message only. No user action is required”.

  • Location of Errorlog when SQL Server is running and you are able to connect:
    • Connect to SQL Server using SQL Server Management Studio by providing correct name. To find the name to connect, refer my earlier post
    • In Query window run below command
      sp_readerrorlog
    • Here is the output

    ERRORLOG

    • Highlighted area “Logging SQL Server messages in file ‘D:\Program Files\Microsoft SQL Server\MSSQL10_50.SQL2K8R2\MSSQL\Log\ERRORLOG’” is current ERRORLOG file
    • If you look at folder D:\Program Files\Microsoft SQL Server\MSSQL10_50.SQL2K8R2\MSSQL\Log\ here are files.

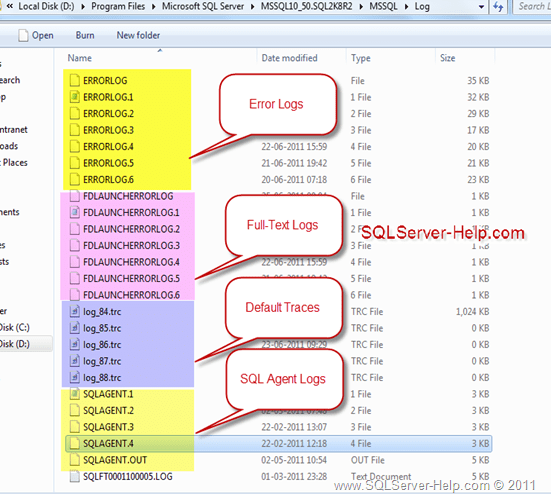

                          LOG Folder

          As you can see above that LOG folder contains many files. I have provided little information about them in picture.

  • Location of Errorlog when SQL Server is running and you are NOT able to connect:

    There could be situations where you are not able to connect to SQL Server because SQL Server service is not getting started. In those situations, sp_readerrorlog can’t be run. Now, we have to find ERRORLOG file using other technique. Here we go.

    • Open SQL Server Configuration Manager:
      Go to Start > All Programs > Microsoft SQL Server 2005 (or 2008) (or 2008 R2) > Configuration Tools > SQL Server Configuration Manager
      SQL Server Configuration Manager
    • Once you open Configuration Manager, you would get below screen. There you need to locate your SQL Server Instance, right click and properties.

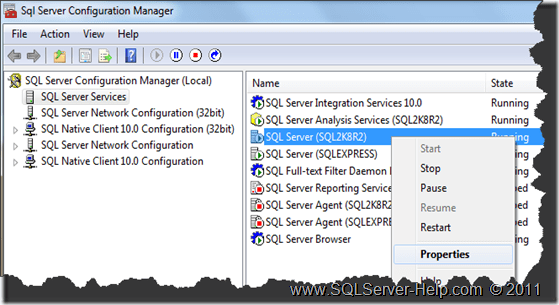

      Configuration Manager

    • Here is the Properties window. Come to Advanced tab & Click on drop down for “Startup Parameters” value and you would see three parameters (can be more also). As shown below there would be –d, –e and –l parameters. Value after –e is your SQL Server Error Log location.

      SSCM Properties

Now if someone is asking ERRORLOG file, please provide using above two methods. You can also get it from SQL Server Management Studio, as described here

Hope this would help someone in the world!

Cheers,
Balmukund Lakhani
Twitter @blakhani

Posted in Configuration Manager, ERRORLOG, SQL Server | 11 Comments »

Help : How can I hide databases from users?

Posted by blakhani on June 25, 2011


This is one of the common questions I have seen on forums, most common request from administrators who have been given task to create multi-tenant SQL Server. This essentially means various department of company or various client of the hosting company would access same SQL Server Instance. Business owners demand that they want clients to see only those databases which are relevant for them. I have worked with a company where the database name was name of the client. Inability to hide name of databases would essentially mean exposing information about their other clients.

In simple words, if Contoso is a database hosting company who has “Northwind traders” and “TailSpin Toys” as their client. If TailSpin logs in to the SQL Server, they should not see “Northwind” database and vice versa.

SQL Server Enterprise Manager calls the sp_MSdbuseraccess stored procedure to determine the accessibility of each database. The sp_MSdbuseraccess stored procedure then runs against every database in SQL Server to determine the user’s permission level in that database. So this can be achieved by altering the stored procedure as documented in KB http://support.microsoft.com/?id=889696 (You may experience a slow response from SQL Server Enterprise Manager when many databases exist in an instance of SQL Server)

In SQL 2005 onwards we fire queries to get the information in SQL Server Management Studio (a.k.a. SSMS) . Now, SQL Server 2005 onwards, we also have limited metadata visibility which I am going to use as “trick” to achieve our goal. As per http://msdn.microsoft.com/en-us/library/ms178534.aspx
{

If the caller of sys.databases is not the owner of the database and the database is not master or tempdb, the minimum permissions required to see the corresponding row are ALTER ANY DATABASE or VIEW ANY DATABASE server-level permission, or CREATE DATABASE permission in the master database. The database to which the caller is connected can always be viewed in sys.databases.
}

So, here is the quick script which can be used to demo this. If you love SSMS then I have also given instruction.

  • Create Two databases.
Create Database [NorthWindDB]
go
Create Database [TailSpinDB]
go
  • Create Logins (Not mapped to any Database)
CREATE LOGIN [NorthWindLogin] WITH
PASSWORD=‘E@syP@ssw0rd’
go
CREATE LOGIN [TailSpinLogin] WITH
PASSWORD=‘E@syP@ssw0rd’
go
  • Right Click on the Root section of the SSMS Tree (SQL Server Name)>Properties>Permissions>Click on the account, and select Deny to view databases. OR use below T-SQL
REVOKE VIEW ANY DATABASE TO [NorthWindLogin]
go
REVOKE VIEW ANY DATABASE TO [TailSpinLogin]
go
  • Right Click on the newly created databases > Properties > Files, and change the Owner to the newly created accounts. OR use below T-SQL
use [NorthWindDB]
go
sp_changedbowner 'NorthWindLogin'
go
use [TailSpinDB]
go
sp_changedbowner 'TailSpinLogin'
go

Here is the final out come…

SSMS

NorthWindLogin can see only NorthWindDB database and TailSpinLogin can see only his database.

Erland Sommarskog, SQL MVP, has filed request “Need VIEW DEFINITION permissions per database”. If you feel this is useful then please vote here!

Hope this would help someone in the world!

Cheers,
Balmukund Lakhani
Twitter @blakhani

Posted in Uncategorized | Leave a Comment »

Help : What’s my SQL Server Name?

Posted by blakhani on June 19, 2011


“What’s in a name? That which we call a rose by any other name would smell as sweet.” – William Shakespeare

Well, SQL Server connectivity did not know about Shakespeare Hot smileWhile working on the forum, one of the most common error posted is below:

TITLE: Connect to Server
——————————
Cannot connect to <Shakespeare>.
——————————
ADDITIONAL INFORMATION:
A network-related or instance-specific error occurred while establishing a connection to SQL Server. The server was not found or was not accessible. Verify that the instance name is correct and that SQL Server is configured to allow remote connections. (provider: SQL Network Interfaces, error: 26 – Error Locating Server/Instance Specified) (Microsoft SQL Server, Error: -1)

For help, click: http://go.microsoft.com/fwlink?ProdName=Microsoft+SQL+Server&EvtSrc=MSSQLServer&EvtID=-1&LinkId=20476
——————————
BUTTONS:
OK
——————————

Let’s look closely at the error message.
1. The server was not found or was not accessible.
2. Verify that the instance name is correct and that SQL Server is configured to allow remote connections.
3. error: 26 – Error Locating Server/Instance Specified.

All of the above are shouting out loud that “Damn! you have given wrong name to connect”. If you have given right name then check if SQL is up and running and then whole troubleshooting starts. The purpose of this post is to help the beginners who don’t care about troubleshooting because they are Visual Studio developers and they are connecting to local SQL Express most of the time.

Okay my dear developers, don’t worry… take a deep breath and start…

To get the SQL Server Name, the first thing you need to do is to find the instance name. On a single machine you can install 16 instances of SQL Servers. Each would have some name. To find the instance name of a SQL Server instance, please follow the steps below:

  • Open SQL Server Configuration Manager (SSCM) from Start – > All Programs -> Microsoft SQL Server 2005/2008/2008 R2 -> Configuration Tools.
  • In the SSCM, click SQL Server Services under SQL Server Configuration Manager (Local), you could find list like SQL Server (InstanceName),
  • The InstanceName is what we need to find, instance name. If you install multiple instances on the server, you will see more than one SQL Server (InstanceName) listed.


In above picture you can see two “SQL Server” in “Service Type” column. It means I have two instances of SQL Server. For default instance you would see Name as SQL Server (MSSQLServer). It means on my machine I have two “named” instances of SQL Server. Keep in mind that you can have only only default instance on a machine.

Okay great! Now you know that your machine has default instance or named instance. And if it’s named then you know its name. Correct? Now lets quickly see what name you should use to connect. Before that you need to find hostname or computer name. Go to Start > Run > cmd This would open command prompt. Type hostname and you should see your machine name as below.


Default Instance Named Instance Comments
BLAKHANI BLAKHANI\SQLEXPRESS
BLAKHANI\SQL2K8R2
this would work from remote machine also.
(LOCAL) (LOCAL)\SQLEXPRESS
(LOCAL)\SQL2K8R2
local only
. .\SQLEXPRESS
.\SQL2K8R2
local only
LOCALHOST LOCALHOST\SQLEXPRESS
LOCALHOST\SQL2K8R2
local only
BLAKHANI.MYDOMAIN.COM BLAKHANI.MYDOMAIN.COM\SQLEXPRESS
BLAKHANI.MYDOMAIN.COM\SQL2K8R2
Remote connections should be allowed as mentioned in http://support.microsoft.com/kb/914277 (

How to configure SQL Server 2005 to allow remote connections)

TCP:221.222.223.224,1433 TCP:221.222.223.224,9999 IP and Port can be found by reading ERRORLOG of SQL Server.



If you don’t see configuration manager then you can also get the instance name from services applet. To do this, go to Start > Run > Services.msc
Here is what i see on my screen


Hope this would help someone in the world!

Cheers,
Balmukund Lakhani
Twitter @blakhani

Posted in Connectivity, SQL Server | 18 Comments »

Help : How can I move Storage in Windows Cluster 2008

Posted by blakhani on June 11, 2011


While working on a case few days ago, I faced this question by customer and i found it interesting to blog about. (Today I found this in forum so finalizing and posting it). Here is the question.

I have created two node windows cluster. All disk are available in “storage” but I don’t see any option to do manual failover unless they are part of some group. How can I test if failover is working fine for disks without shutting down the node or adding them to a group.

Here is the screenshot to explain the problem better. As you can see that U and W are not part of any group defined under “Services and Applications”. So by default they are the part of “Available Storage” group.

Storage

And indeed there is no option in UI to do failover of those disks.

No Option

I spend sometime with windows team and I was able to find the answer. so here it goes.
This can only be done by command line. We need to use cluster.exe command to achieve this.

Cluster Group “Available Storage” /Move:NodeName

In above command NodeName is optional. If you have two nodes, it would move storage automatically to other node.

Move Using Command

Hope this would help someone in the world!

Cheers,
Balmukund Lakhani
Twitter @blakhani

Posted in Uncategorized | 2 Comments »

Help : Who dropped objects from database?

Posted by blakhani on June 8, 2011


Sometime I have been asked that how to find out who dropped/altered/created table/stored procedure. Well, SQL 2005 has out-of-the-box solution to this problem. This works in SQL 2008 as well.

Schema Change History is the report which would give details. This report takes data from default trace which is enabled by default in SQL Server 2005 default installation. Below command will help you in finding current status.

USE master;
EXEC sp_configure ‘show advanced option’, ’1′;
RECONFIGURE WITH OVERRIDE;
EXEC sp_configure ‘default trace’;
GO

If its enabled you would see run_value as 1.

More about default trace can be read here

Schema Change History

If you want to see who dropped a database, you can right click on Server Icon and go to Reports > Standard Reports > Schema Changed History. This Reports output would changed based on where you right clicked it (on server icon or database name)

Since default trace will be maximum 100 MB in size you may not get the data which is pretty old. Every restart also creates new file. So, if your SQL Server has restarted five times after someone dropped the object, you will not be able to see it here.

SQL Server 2005 has many other “Standard Reports” which can be found in SQL Server Management Studio.

Enjoy!!!

<Tags> Who dropped my database, when database was dropped, someone deleted database objects, tables, procedures, list of dropped objects in SQL Server 2005, Schema Change history Report, see who dropped databases, how to find who dropped the database in SQL server 2005 objects dropped</Tags>

Cheers!
Balmukund

Posted in Uncategorized | 10 Comments »

Help : Can I Upgrade SQL Edition without reinstall?

Posted by blakhani on June 3, 2011


And answer is “it depends”. Well, I have seen posts in forum asking steps to upgrade SQL Standard to SQL Enterprise OR SQL Developer to SQL Standard etc. So I am writing this blog to bring some clarity in steps to be performed.
First of all, refer below matrix to know if in place edition upgrade is possible or not.

http://msdn.microsoft.com/en-us/library/ms143393.aspx (SQL Server 2008 R2)
http://msdn.microsoft.com/en-us/library/ms143393(v=SQL.100).aspx (SQL Server 2008)
http://msdn.microsoft.com/en-us/library/ms143393(v=SQL.90).aspx (SQL Server 2005)

Above links are for version upgrade as well as edition upgrade. Now, if matrix says you can upgrade from edition X to edition Y then steps are pretty simple.
For SQL 2008 and SQL 2008 R2:

  • Run setup.exe from media.
    • If you have SQL already installed then you can also launch “Installation Center” by going to Start->Programs ->Microsoft SQL Server 2008[R2]->Configuration Tools-> SQL Server Installation Center[(64-bit)].
  • You would get below screen titled “SQL Server Installation Center”
  • Go to “Maintenance” and click on “Edition Upgrade”

  • Go through the Wizard and choose the Instance you want to upgrade.

It would hardly take few minutes to upgrade and I have done with many customer.

One question which was asked many times is where the hell is the key which i should enter. If you have media, look for DefaultSetup.ini file and you would find PID there.

For SQL 2005:
I would update this post once I take screenshot from SQL 2005 setup.

Cheers,
Balmukund Lakhani

Posted in Edition Upgrade, SQL Server, Upgrade | 3 Comments »

Help: SQL Server Evaluation Edition Expired!

Posted by blakhani on June 1, 2011


Many time in forums, I have seen question about Enterprise Evaluation Edition expiration. So idea of this blog post is to avoid repetitive screenshots (which i love to put in my replies as they are more powerful). So here we go…

If you have SQL Server 2005/2008/2008 R2 Enterprise Evaluation edition and its already expired then you may see below error message when you open SQL Server Management Studio.

Here is the text of the message for better search.

Microsoft SQL Server Management Studio:
Evaluation period has expired. For information on how to upgrade your evaluation software please go to http://www.microsoft.com/sql/howtobuy

There could be two possibilities.

  • SQL Server is really really expired (This is most common question in forum)
  • SQL Server 2008 has been upgraded to full version but tools are not working. This is a known issue which i have blogged here

Now, if SQL 2005 is expired then you have no choice other than uninstall/reinstall SQL Server (of course you can reuse mdf and ldf files). In this blog I am not going to cover SQL 2005 upgrade (come on, its 6 years old product when I was writing this post). If SQL 2005 is not expired then you can perform edition upgrade by putting CD/DVD of new edition and choosing proper instance .

From SQL 2008 onwards, you can perform edition upgrade even if its expired. Cool! Isn’t it? Well, this feature was introduced by hearing feedback from customers. Here are the steps to do it.

  • Launch the Setup.exe from the DVD/Shared Location. You would get below screen titled “SQL Server Installation Center” .
    • If you have SQL already installed then you can also launch “Installation Center” by going to Start->Programs ->Microsoft SQL Server 2008[R2]->Configuration Tools-> SQL Server Installation Center[(64-bit)].


  • Click on “Maintenance” and choose “Edition Upgrade”
  • Go through the Wizard and choose the Instance you want to upgrade.

Simple, huh?

Fewer times I have been asked if I need to download mount/extract complete ISO to run edition upgrade? Well, here is the trick. Media for all the edition is same. Its the PID which decides which edition to be installed. PID is picked from a file called DefaultSetup.Ini (DVD\x86 or x64 or ia64 folder). It essentially means that you can extract that file from ISO image, run setup of Evaluation media and in below screen type the PID manually.


Hope this helped someone today!

Cheers,
Balmukund Lakhani

Posted in Evaluation, Expired, SQL Server | 8 Comments »
