Archive for August, 2014

Troubleshooting : %1 is not a valid win32 application

Posted by blakhani on August 19, 2014


As part of my job, a significant part of my working hours are all about troubleshooting SQL related issues. They could range from SQL installation, performance, high availability, T-SQL query and pretty much any area related to SQL Server.

Few days back one of my friend pinged me and told that he is not able to start “Reporting Service” service. I asked if he is seeing any error message anywhere like event logs. He shared below with me.

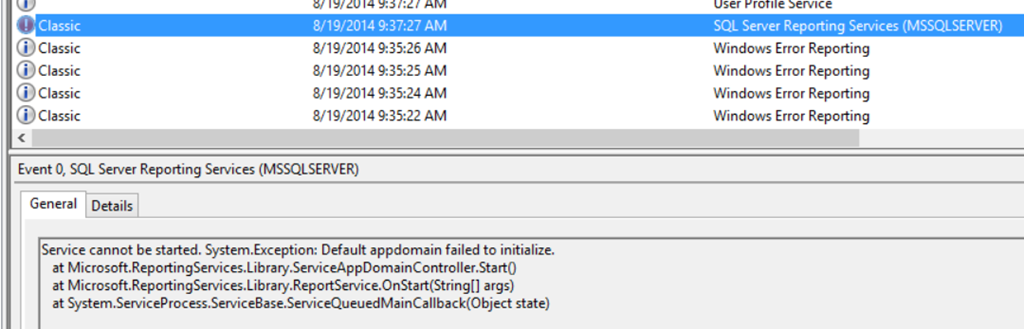

Here is the text of the message.

Service cannot be started. System.Exception: Default appdomain failed to initialize.

   at Microsoft.ReportingServices.Library.ServiceAppDomainController.Start()

   at Microsoft.ReportingServices.Library.ReportService.OnStart(String[] args)

   at System.ServiceProcess.ServiceBase.ServiceQueuedMainCallback(Object state)

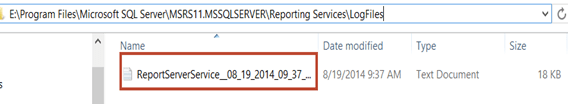

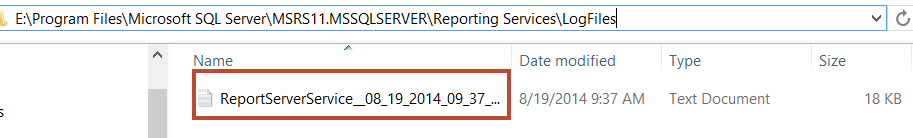

That was not a good message to tell us what’s wrong. I researched further and found that similar to ERRORLOG in SQL Server, there are logs for Reporting Services as well. Here is the more detailed messaged in Reporting Services log.


configmanager!DefaultDomain!e10!08/16/2014-01:52:29:: e ERROR: Error loading configuration file: %1 is not a valid Win32 application

library!DefaultDomain!e10!08/16/2014-01:52:29:: e ERROR: Throwing Microsoft.ReportingServices.Diagnostics.Utilities.ServerConfigurationErrorException: , Microsoft.ReportingServices.Diagnostics.Utilities.ServerConfigurationErrorException: The report server has encountered a configuration error.  —> System.ComponentModel.Win32Exception: %1 is not a valid Win32 application

   at Microsoft.ReportingServices.Diagnostics.SafeLibraryHandle.LoadLibrary(String libName)

   at Microsoft.ReportingServices.Diagnostics.SqlInstallation.GetSkuFromSqlBoot(String instanceId, Int32& daysLeft)

   at Microsoft.ReportingServices.Diagnostics.Sku.<>c__DisplayClass6.<GetSkuFromSqlBoot>b__5()

   at Microsoft.ReportingServices.Diagnostics.RevertImpersonationContext.<>c__DisplayClass1.<Run>b__0(Object state)

   at System.Security.SecurityContext.Run(SecurityContext securityContext, ContextCallback callback, Object state)

   at Microsoft.ReportingServices.Diagnostics.RevertImpersonationContext.Run(ContextBody callback)

   at Microsoft.ReportingServices.Diagnostics.Sku.GetSkuFromSqlBoot(String instanceId)

   at Microsoft.ReportingServices.Diagnostics.Sku.GetInstalledSku(String instanceId)

   at Microsoft.ReportingServices.Diagnostics.RSConfiguration.AdjustProperties(ConfigurationPropertyBag properties)

   at Microsoft.ReportingServices.Diagnostics.RSConfiguration.Validate(ConfigurationPropertyBag properties)

   at Microsoft.ReportingServices.Diagnostics.RSConfigurationFileManager.LoadDocument()

   at Microsoft.ReportingServices.Diagnostics.RSConfigurationFileManager.LoadConfiguration()

   — End of inner exception stack trace —;

appdomainmanager!DefaultDomain!e10!08/16/2014-01:52:29:: e ERROR: Appdomain:1 DefaultDomain failed to initialize. Error: Microsoft.ReportingServices.Diagnostics.Utilities.ServerConfigurationErrorException: The report server has encountered a configuration error.  —> System.ComponentModel.Win32Exception: %1 is not a valid Win32 application.

appdomainmanager!DefaultDomain!352c!08/16/2014-01:52:29:: e ERROR: Windows service failed to start. Exception: System.Exception: Default appdomain failed to initialize.

   at Microsoft.ReportingServices.Library.ServiceAppDomainController.Start()

If you are a developer, you would know what a stack is. It goes from bottom to top and shows the section which caused the error. From the highlighted pieces it’s easy to make sense. Reporting Service is trying to get SKU (edition) which is installed on this machine using function GetInstalledSku. After that we are seeing function GetSkuFromSqlBoot which indicates that we will get information using this function. Later, we are seeing LoadLibrary and that function is raising error. Now the question is why! If we do a search on internet using Bingoogle. In general, the most possible cause of the error is corruption of the files which are needed. If we capture ProcMon while starting SSRS Service, it would be easy to find last loaded DLL and then we may need to find if it’s a correct DLL by comparing with another machine where things are working fine.

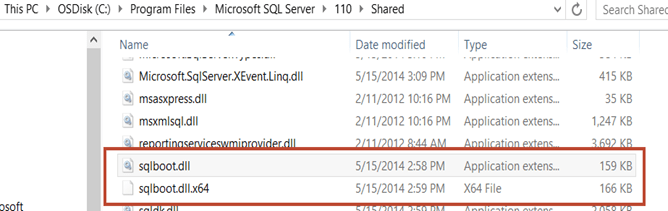

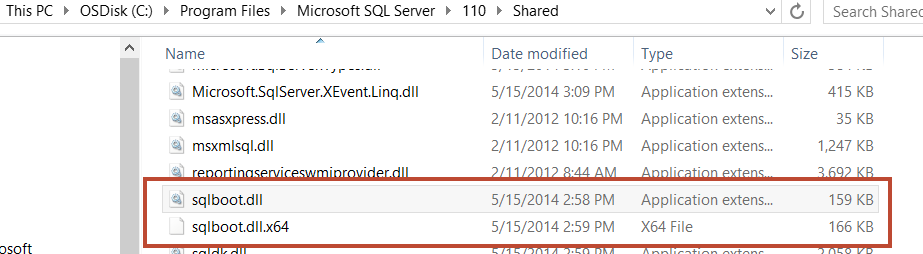

Interesting, here is what I saw under “C:\Program Files\Microsoft SQL Server\110\Shared”


As we can see that someone has renamed the file and original file is renamed as sqlboot.dll.x64.

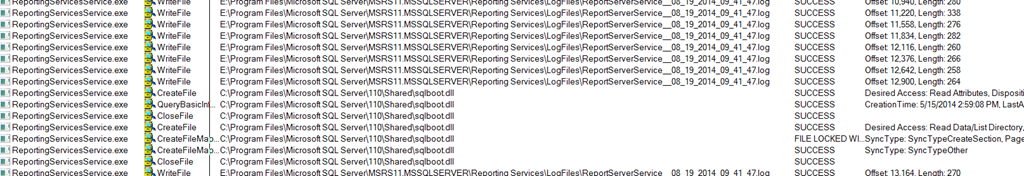

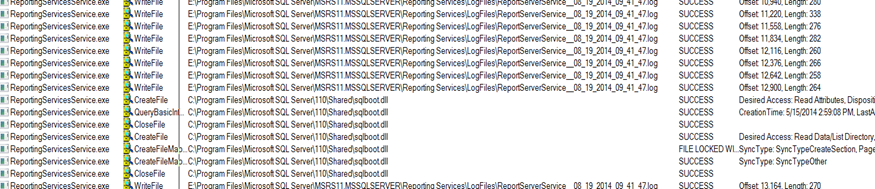

When I captured ProcMon


And after this I saw “exit” of the threads and process.

Another symptom on the same problem is that when he was running SQL Setup to add some component, he was getting below error

There was a failure to calculate the default value of setting DIGITALPRODUCTID.

and this is what we see in setup logs.

(01) 2014-08-15 10:46:44 Slp: The following is an exception stack listing the exceptions in outermost to innermost order

(01) 2014-08-15 10:46:44 Slp: Inner exceptions are being indented

(01) 2014-08-15 10:46:44 Slp:

(01) 2014-08-15 10:46:44 Slp: Exception type: Microsoft.SqlServer.Chainer.Infrastructure.CalculateSettingValueException

(01) 2014-08-15 10:46:44 Slp:     Message:

(01) 2014-08-15 10:46:44 Slp:         There was a failure to calculate the default value of setting DIGITALPRODUCTID.

(01) 2014-08-15 10:46:44 Slp:     HResult : 0x85640001

(01) 2014-08-15 10:46:44 Slp:         FacilityCode : 1380 (564)

(01) 2014-08-15 10:46:44 Slp:         ErrorCode : 1 (0001)

(01) 2014-08-15 10:46:44 Slp:     Data:

(01) 2014-08-15 10:46:44 Slp:       SettingId = DIGITALPRODUCTID

(01) 2014-08-15 10:46:44 Slp:       WatsonData = Microsoft.SqlServer.Chainer.Infrastructure.CalculateSettingValueException@1

(01) 2014-08-15 10:46:44 Slp:     Stack:

(01) 2014-08-15 10:46:44 Slp:         at Microsoft.SqlServer.Chainer.Infrastructure.Setting`1.CalculateValue()

(01) 2014-08-15 10:46:44 Slp:         at Microsoft.SqlServer.Deployment.PrioritizedPublishing.PublishingQueue.CallQueuedSubscriberDelegates()

(01) 2014-08-15 10:46:44 Slp:         at Microsoft.SqlServer.Deployment.PrioritizedPublishing.PublishingQueue.Publish(Publisher publisher)

(01) 2014-08-15 10:46:44 Slp:         at Microsoft.SqlServer.Chainer.Infrastructure.Setting`1.set_Value(T value)

(01) 2014-08-15 10:46:44 Slp:         at Microsoft.SqlServer.Chainer.Infrastructure.Setting`1.SetValue(Object newValue, InputSettingSource source)

(01) 2014-08-15 10:46:44 Slp:         at Microsoft.SqlServer.Chainer.Infrastructure.InputSettingService.SetSettingValue[T](String settingName, T value, InputSettingSource source)

(01) 2014-08-15 10:46:44 Slp:         at Microsoft.SqlServer.Configuration.Property`1.SetValueAndSource(Object value, InputSettingSource source)

(01) 2014-08-15 10:46:44 Slp:         at Microsoft.SqlServer.Configuration.InstallWizard.InstallTypeController.SaveData()

(01) 2014-08-15 10:46:44 Slp:         at Microsoft.SqlServer.Configuration.InstallWizardFramework.InstallWizardPageHost.PageLeaving(PageChangeReason reason)

(01) 2014-08-15 10:46:44 Slp:         at Microsoft.SqlServer.Configuration.WizardFramework.UIHost.set_SelectedPageIndex(Int32 value)

(01) 2014-08-15 10:46:44 Slp:         at Microsoft.SqlServer.Configuration.WizardFramework.NavigationButtons.nextButton_Click(Object sender, EventArgs e)

(01) 2014-08-15 10:46:44 Slp:         at System.Windows.Forms.Control.OnClick(EventArgs e)

(01) 2014-08-15 10:46:44 Slp:         at System.Windows.Forms.Button.OnMouseUp(MouseEventArgs mevent)

(01) 2014-08-15 10:46:44 Slp:         at System.Windows.Forms.Control.WmMouseUp(Message& m, MouseButtons button, Int32 clicks)

(01) 2014-08-15 10:46:44 Slp:         at System.Windows.Forms.Control.WndProc(Message& m)

(01) 2014-08-15 10:46:44 Slp:         at System.Windows.Forms.ButtonBase.WndProc(Message& m)

(01) 2014-08-15 10:46:44 Slp:         at System.Windows.Forms.Button.WndProc(Message& m)

(01) 2014-08-15 10:46:44 Slp:         at System.Windows.Forms.Control.ControlNativeWindow.WndProc(Message& m)

(01) 2014-08-15 10:46:44 Slp:         at System.Windows.Forms.NativeWindow.Callback(IntPtr hWnd, Int32 msg, IntPtr wparam, IntPtr lparam)

(01) 2014-08-15 10:46:44 Slp:     Inner exception type: System.ComponentModel.Win32Exception

(01) 2014-08-15 10:46:44 Slp:         Message:

(01) 2014-08-15 10:46:44 Slp:                %1 is not a valid Win32 application.

(01) 2014-08-15 10:46:44 Slp:

(01) 2014-08-15 10:46:44 Slp:         HResult : 0x80004005

(01) 2014-08-15 10:46:44 Slp:         Error : 193

(01) 2014-08-15 10:46:44 Slp:         Stack:

(01) 2014-08-15 10:46:44 Slp:                 at Microsoft.SqlServer.Configuration.Sco.SqlbootModule.get_Handle()

(01) 2014-08-15 10:46:44 Slp:                 at Microsoft.SqlServer.Configuration.Sco.EditionInfo.GetEditionInfo(String RegistryPath, RegistryView view, UInt32& daysLeft)

(01) 2014-08-15 10:46:44 Slp:                at Microsoft.SqlServer.Configuration.Sco.EditionInfo.GetEditionInfo(String RegistryPath, RegistryView view)

(01) 2014-08-15 10:46:44 Slp:                 at Microsoft.SqlServer.Configuration.SetupExtension.SqlEditionSetting`1.GetDefaultSqlEditionInfoValue()

(01) 2014-08-15 10:46:44 Slp:                 at Microsoft.SqlServer.Configuration.SetupExtension.DigitalProductIdSetting.DefaultValue()

(01) 2014-08-15 10:46:44 Slp:                 at Microsoft.SqlServer.Deployment.PrioritizedPublishing.PublishingQueue.CallFunctionWhileAutosubscribing[T](SubscriberDelegate subscriberDelegate, Int32 priority, AutosubscribingFunctionDelegate`1 function)

(01) 2014-08-15 10:46:44 Slp:                 at Microsoft.SqlServer.Chainer.Infrastructure.Setting`1.CalculateValue()

So we can clearly see that someone has messed around with the files related to SQL. Here also we are seeing SqlbootModule.

RESOLUTION

In this situation, I went ahead and named the files correctly and things were fixed. BUT if you get this error “%1 is not a valid Win32 application” you might need to remove and install SQL Server. It’s not always possible to find the cause with the corrupted file and reinstallation would be a faster approach.

Hope this helps!

  • Cheers,
  • Balmukund Lakhani
  • Twitter @blakhani
  • Author: SQL Server 2012 AlwaysOnPaperback, Kindle
  • Advertisements

    Posted in Troubleshooting | Tagged: , , | 2 Comments »

    Tips and Tricks : Move database files to new location – various approaches

    Posted by blakhani on August 14, 2014


    Recently someone ask this question to me – How would you move database files to new location with no downtime. Based on my knowledge, the downtime is needed as we need physical movement of the database files and they can’t be moved unless the handle is released by a process, which is sqlservr.exe in our case. So I provided various options to them and decided to choose the best one. Here is the database create script, in case you want to follow along the blog.

    CREATE DATABASE [SQLServerHelp]
     ON  PRIMARY
    ( NAME = N'SQLServerHelp', FILENAME = N'C:\OldLocation\SQLServerHelp.mdf' ) LOG ON
    ( NAME = N'SQLServerHelp_log', FILENAME = N'C:\OldLocation\SQLServerHelp_log.ldf')
    GO



    1. Detach/Attach

    This is straight forward approach where we detach the database, move physical files to new location and attach database from there. When we detach, the database would no longer be available. Here are the steps:

    --Step 1) detach the database (DOWNTIME STARTS)
    USE master
    go
    sp_detach_db 'SQLServerHelp'
    go


    -- Step 2)- move files physically to new location
    EXEC xp_cmdshell 'COPY “C:\OldLocation\SQLServerHelp.mdf” “C:\NewLocation\SQLServerHelp.mdf”'
    GO
    EXEC xp_cmdshell 'COPY “C:\OldLocation\SQLServerHelp_log.ldf” “C:\NewLocation\SQLServerHelp_log.ldf”'
    GO

    -- If xp_cmdshell is not enabled or you can't enable then do operating system copy and paste using Ctrl+C and Ctrl+V


    -- Step 3) attach the database (DOWNTIME COMPLETES)
    CREATE DATABASE SQLServerHelp
    ON (FILENAME = 'C:\NewLocation\SQLServerHelp.mdf'),
       (FILENAME = 'C:\NewLocation\SQLServerHelp_log.ldf')
    FOR ATTACH;




    Downtime: Starts at Detach and ends at attach. if it’s a big database then copying them is the actual unavailability of the database.

    2. Alter Database

    This is similar to detach/attach method but instead of detaching, we take database offline. Then we use ALTER DATABASE command to modify location in system catalog. Before you attempt to use this trick, save the output of below as it would be needed in step 3

    use <database_name>
    go
    sp_helpfile
    go


    Here are the steps

    --Step 1) set database offline (DOWNTIME STARTS)

    ALTER DATABASE [SQLServerHelp]
    SET OFFLINE
    WITH ROLLBACK IMMEDIATE
    GO

    -- Step 2) move files physically to new location
    EXEC xp_cmdshell 'COPY “C:\OldLocation\SQLServerHelp_log.ldf” “C:\NewLocation\SQLServerHelp_log.ldf”'
    GO
    EXEC xp_cmdshell 'COPY “C:\OldLocation\SQLServerHelp.mdf” “C:\NewLocation\SQLServerHelp.mdf”'
    GO
    -- If xp_cmdshell is not enabled or you can't enable then do operating system copy and paste using Ctrl+C and Ctrl+V

    -- Step 3)- alter database to reflect the new location
    -- select * from sys.sysaltfiles where dbid = db_id('SQLServerHelp') can be used to get logical name used below

    ALTER DATABASE [SQLServerHelp] MODIFY FILE (
        NAME = 'SQLServerHelp' ,FILENAME = 'C:\NewLocation\SQLServerHelp.mdf'
        )
    GO
    ALTER DATABASE [SQLServerHelp] MODIFY FILE (
        NAME = 'SQLServerHelp_log' ,FILENAME = 'C:\NewLocation\SQLServerHelp_log.ldf'
        )
    GO

    -- Step 4) set database online (DOWNTIME COMPLETES)
    ALTER DATABASE [SQLServerHelp]
    SET ONLINE
    GO



    Downtime: Starts at offline and ends at online. if it’s a big database then copying them is the actual unavailability of the database.

    3. Backup/Restore

    This is little untraditional approach but you can notice that If the database size is big then above approaches (1 & 2) would need more downtime as we need to move all files to new location. This approach of backup/restore would help in files movement with less downtime. One big disadvantage of this approach is that we need additional disk space than earlier approaches. In this approach we need to have a full backup of the database which needs an additional space. Also note that we are going to have two copies of all data and log files as we don’t have choice to do Cut+Paste. Here comes the compromise between business downtime vs. storage requirement. Here are the steps. We need database to be in full recovery model because we are going to use log backup capability.

    --Step 1) take a full backup of the database
    USE master
    go
    BACKUP DATABASE [SQLServerHelp] TO
    DISK = N'E:\Program Files\Microsoft SQL Server\MSSQL12.SQL2014\MSSQL\Backup\SQLServerHelp.bak'
    WITH FORMAT, INIT
    GO

    -- Step 2)- Restore backup as different database with files at new location with norecovery
    USE [master]
    RESTORE DATABASE [SQLServerHelp_New] FROM
    DISK = N'E:\Program Files\Microsoft SQL Server\MSSQL12.SQL2014\MSSQL\Backup\SQLServerHelp.bak'
    WITH NORECOVERY,
    MOVE N'SQLServerHelp' TO N'C:\NewLocation\SQLServerHelp.mdf',
    MOVE N'SQLServerHelp_log' TO N'C:\NewLocation\SQLServerHelp_log.ldf'
    GO


    -- Step 3) Take log backup with NORECOVERY (DOWNTIME STARTS)
    BACKUP LOG [SQLServerHelp]
    TO  DISK = N'E:\Program Files\Microsoft SQL Server\MSSQL12.SQL2014\MSSQL\Backup\SQLServerHelp_Tail.bak'
    WITH  NO_TRUNCATE , FORMAT, INIT,
    NORECOVERY
    GO

    -- Step 4) Restore tail log backup with RECOVERY
    RESTORE LOG [SQLServerHelp_New]
    FROM  DISK = N'E:\Program Files\Microsoft SQL Server\MSSQL12.SQL2014\MSSQL\Backup\SQLServerHelp_Tail.bak'
    WITH RECOVERY
    GO

    -- Step 5) Drop the old database and rename the new one (DOWNTIME ENDS)
    Drop Database SQLServerHelp
    go
    sp_renamedb 'SQLServerHelp_New', 'SQLServerHelp'




    Downtime: Starts with last log backup performed using “with norecovery” and end after rename of new database to original name.

    Now you can choose option based on downtime and space availability.

  • Cheers,
  • Balmukund Lakhani
  • Twitter @blakhani
  • Author: SQL Server 2012 AlwaysOnPaperback, Kindle
  • Posted in Tips and Tricks | Tagged: , , , , | Leave a Comment »

    Tips and Tricks : Error: 5171 – tempdb.mdf is not a primary database file

    Posted by blakhani on August 12, 2014


    If you are getting same error for database other than tempdb then there is a serious issue with the file. Primary file is a database file which contains information about database itself like location, size of other files and other information about the database. Error 5171 means that SQL Server is attempting to get the information for a database from a file that is not the primary file.

    While doing some testing with TempDB database I started getting below errors in ERRORLOG and SQL Server was not getting started.

    2014-08-12 05:08:24.91 spid9s      Clearing tempdb database.

    2014-08-12 05:08:28.20 spid9s      Error: 5171, Severity: 16, State: 1.

    2014-08-12 05:08:28.20 spid9s      F:\TEMPDB\tempdb.mdf is not a primary database file.

    2014-08-12 05:08:28.26 spid9s      Error: 1802, Severity: 16, State: 4.

    2014-08-12 05:08:28.26 spid9s      CREATE DATABASE failed. Some file names listed could not be created. Check related errors.

    2014-08-12 05:08:28.26 spid9s      Could not create tempdb. You may not have enough disk space available. Free additional disk space by deleting other files on the tempdb drive and then restart SQL Server. Check for additional errors in the event log that may indicate why the tempdb files could not be initialized.

    2014-08-12 05:08:28.29 spid9s      SQL Server shutdown has been initiated



    This started happening after I moved TempDB to new location using my own earlier blog. Here is the command which I have run

    USE master;
    GO
    ALTER DATABASE tempdb
    MODIFY FILE (NAME = tempdev, FILENAME = 'F:\TEMPDB\tempdb.mdf');
    GO
    ALTER DATABASE tempdb
    MODIFY FILE (NAME = templog, FILENAME = 'F:\TEMPDB\tempdb.mdf');
    GO



    If you notice closely, I have made mistake in extension of the files and due to which both files are same. This can easily be corrected by starting SQL in minimal configuration using parameter f and correcting the path.

    When I tried the same in SQL Server 2014, I got below error message, which is amazing.

    Msg 12106, Level 16, State 1, Line 6

    The path name ‘F:\TEMPDB\tempdb.mdf’ is already used by another database file. Change to another valid and UNUSED name.

    If this is happening for database other than TempDB after moving then you may want to check if move command was proper or not. You need to check logical name and the physical file path. If this is after some crash then you may need to restore from a last known good backup. If you don’t have backup then … you need to find a new assignment! Take this as a new lesson and move on. There are data recovery tools available but I have not worked with them and can’t recommend anyone.

    Hope this helps.

  • Cheers,
  • Balmukund Lakhani
  • Twitter @blakhani
  • Author: SQL Server 2012 AlwaysOnPaperback, Kindle
  • Posted in Tips and Tricks, Troubleshooting | Tagged: , , , | 1 Comment »
