Help: SQL Server Always On Availability Group Listener not working in Azure SQL VMs (Using Internal Load Balancer – ILB). How to troubleshoot?

Posted by blakhani on April 17, 2018

As many of you might know that currently I have been supporting SQL Server in Azure Virtual Machines. Most of the concepts remains same but one of the common issue which was reported by many customer is about Always On listener connectivity. In this blog we would talk about the possible causes of SQL Server Always On Availability Group Listener not working in Azure SQL VMs.

The most common issue is that the listener got created successfully but it connects only from the server which is primary replica. Note that this issue will not occur in on-premise because there is no ILB needed.

Possible Cause # 1

Many of our customers have come to Microsoft via Azure support ticket, after following below article. (This is the most common issue)

Configure a load balancer for an Always On availability group in Azure

Is there something wrong with the article? No, there is nothing wrong there. Its mostly a oversight when customer miss running below script.

$ClusterNetworkName = "<MyClusterNetworkName>" # the cluster network name (Use Get-ClusterNetwork on Windows Server 2012 of higher to find the name)
$IPResourceName = "<IPResourceName>" # the IP Address resource name
$ILBIP = "<n.n.n.n>" # the IP Address of the Internal Load Balancer (ILB). This is the static IP address for the load balancer you configured in the Azure portal.
[int]$ProbePort = <nnnnn>

Import-Module FailoverClusters

Get-ClusterResource $IPResourceName | Set-ClusterParameter -Multiple @{"Address"="$ILBIP";"ProbePort"=$ProbePort;"SubnetMask"="";"Network"="$ClusterNetworkName";"EnableDhcp"=0}

The parameters are explained in the article which I mentioned in the beginning. This is the script which maps probe port and IP which you have defined in the portal. Here is the PowerShell script which I use to figure out above (Thanks to my team member Ghufran)

#--  Probe Check Script:
Get-ClusterResource |`
Where-Object {$_.ResourceType.Name -like "IP Address"} |`
Get-ClusterParameter |`
Where-Object {($_.Name -like "Network") -or ($_.Name -like "Address") -or ($_.Name -like "ProbePort") -or ($_.Name -like "SubnetMask")}

Above script shows us the output which can be used to fill in first PowerShell script.

Possible Cause # 2

Second possible cause if that Load Balancing rules are not configured correctly. This information is also mentioned in the article.


Most of the time two values are set incorrectly “Session persistence” and/or “Floating IP (direct server return)”. If we choose any value other than what mentioned in above image, you would get connectivity issue from passive/other nodes.

Possible Cause # 3

In few customer cases I have seen that they run PowerShell for “Cluster IP Address” also. There is no real need to

Possible Cause # 4

In few cases, we have also seen that probe port was not opened in firewall. You should enable 1433 (SQL Server listening Port), 5022 (Always On Endpoint port), 59999 (Probe Port). If you are using any non-default port then take care of them in firewall.

Possible Cause # 5

If you are using NSG in Azure then make sure ports mentioned in #4 is are open.

This is the list I have compiled based on support cases reported. I will keep adding more items as and when they are reported.

  • Cheers,
  • Balmukund Lakhani
  • Twitter @blakhani
  • Author: SQL Server 2012 AlwaysOnPaperback, Kindle
  • Advertisement

    Posted in Always On, AlwaysOn, Azure ILB, listener, Microsoft Azure | Tagged: , , , , , | 4 Comments »

    AlwaysOn – How many databases can be added in Availability Group? Any hard limit?

    Posted by blakhani on April 14, 2015

    This is one of the common question asked. This blog has list of resources which can be useful in getting answer. First lets look at books online.

    Prerequisites, Restrictions, and Recommendations for AlwaysOn Availability Groups (SQL Server)

    Maximum number of availability groups and availability databases per computer: The actual number of databases and availability groups you can put on a computer (VM or physical) depends on the hardware and workload, but there is no enforced limit. Microsoft has extensively tested with 10 AGs and 100 DBs per physical machine. Signs of overloaded systems can include, but are not limited to, worker thread exhaustion, slow response times for AlwaysOn system views and DMVs, and/or stalled dispatcher system dumps. Please make sure to thoroughly test your environment with a production-like workload to ensure it can handle peak workload capacity within your application SLAs. When considering SLAs be sure to consider load under failure conditions as well as expected response times.

    In general, the more databases that are replicated and the more secondary replicas that exist – the more worker threads and more memory that will be consumed just to have the AlwaysOn infrastructure.  As the text above indicates, there is no enforced limit, but the more you have the more worker threads and memory will be needed.   If there are insufficient worker threads you will probably see error messages in the SQL Error log similar to:

    “The thread pool for AlwaysOn Availability Groups was unable to start a new worker thread because there are not enough available worker threads.  This may degrade AlwaysOn Availability Groups performance.  Use the "max worker threads" configuration option to increase number of allowable threads.”

    If starved for memory, you could see many different error messages – that may or may not look like they relate to AlwaysOn. One possible message could be:

    “Could not start the AlwaysOn Availability Groups transport manager. This failure probably occurred because a low memory condition existed when the message dispatcher started up. If so, other internal tasks might also have experienced errors. Check the SQL Server error log and the Windows error log for additional error messages. If a low memory condition exists, investigate and correct its cause.”

    Here are other blogs which explain the number of threads in worker pool to support availability group.

    AlwaysOn – HADRON Learning Series:  Worker Pool Usage for HADRON enabled databases

    Monitoring SQL Server 2012 AlwaysOn Availability Groups Worker Thread Consumption

    Hope this helps.

  • Cheers,
  • Balmukund Lakhani
  • Twitter @blakhani
  • Posted in AlwaysOn, SQL Server 2012, SQL Server 2014 | Tagged: , , , | Leave a Comment »

    AlwaysOn : Better Together – Using AlwaysOn Availability Group and Log Shipping

    Posted by blakhani on July 3, 2014

    In recent past once of my friend came with a requirement where she wanted to use log shipping along with AlwaysOn Availability Group. I asked “are you not happy with 4 secondary replicas in SQL 2012 and 8 secondary replicas in SQL 2014? Do you want more?” and she said that it’s not because of number of secondary replica, its about controlling the data movement and restore delay on secondary database in log-shipping. This made me think broader and here is list of reasons why someone would use AlwaysOn Availability Group and Log Shipping together.

    • Delayed Recovery – In Log-shipping we can have definite delay on secondary database. This would safe guard DBA from “oops!” and “was that the production server?” situations. Log shipping can control the delay of transaction log restore while Asynchronous secondary replica can not.
    • Single DR Server – Single Server can be used as multiple log-shipping pair’s destination.
    • Infrastructure – Server at DR site can’t be a part of current cluster due to infrastructure limitations.
    • Technical – Secondary server is already a part of different windows failover cluster. In availability group, we can’t have overlap of nodes by two windows clusters.

    Keeping all of the above in mind, someone might want to use AlwaysOn Availability Group and Log Shipping together.

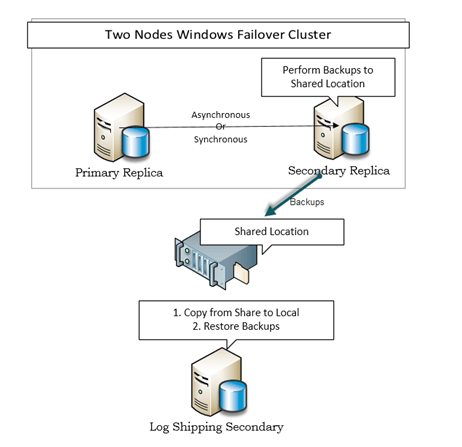

    Here is a typical topology which can be deployed.


    Number of replicas can be based on your own environment. Few important points to note:

    • We need to configure both servers in availability group as primary for log shipping with same destination. This can be done by script or UI, based on you choice.
    • Log Shipping knows about backup preference and backup priority for availability group. This means that we can offload backups on secondary.
    • Backup should be taken to shared location so that the copy job is always using same location to pick the files even after failover/role change of availability group.

    In my next blog, I would show step by step deployment guide of this configuration.

    <EDIT 13-April-2017>

    Today, I was trying to follow my own blog and was having trouble. Here are the high level steps.

    1. Configure Log-shipping from Primary replica in AlwaysOn to LogShipping secondary server. No special step needed here.

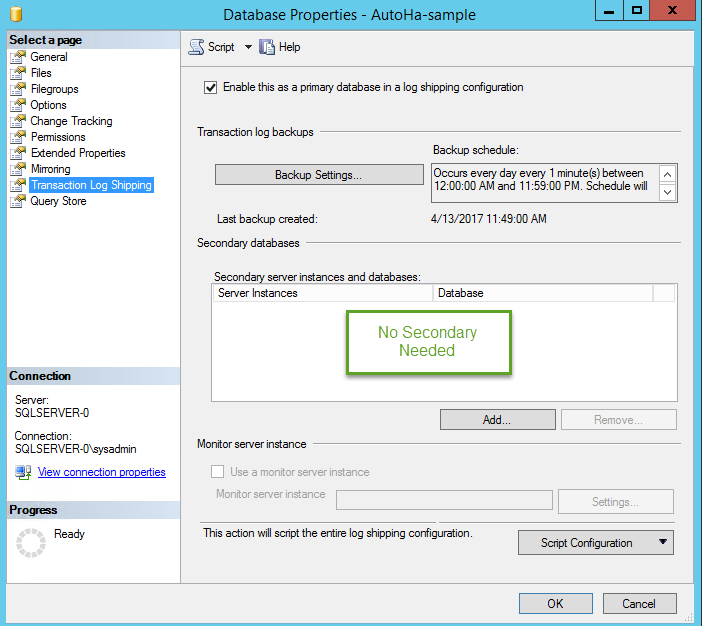

    2. On Secondary replica, enable only the backups. Don’t add secondary.


    </EDIT 13-April-2017>
