Posts Tagged ‘checkpoint’

A-Z of In-Memory OLTP : Performance Tip for Placement of Data and Delta Files (Checkpoint Files)

Posted by blakhani on April 29, 2014


While preparing my session about In-Memory OLTP for internal audience, I learned something new about placement of checkpoint files. In case you don’t know about checkpoint files, I would like you to read about checkpoint (part 1 and part 2).

Data files and Delta files are created in round robin fashion. Let’s assume that we have two drives W and X and we want to distribute the IO load of In-Memory table. In general, for disk based table, what we used to do? Create the file on each drive? Yes, that would work for disk bases table but there is a little behavior which we should know before doing such thing for in-memory tables.

For demo purpose, I am going to use two folder on same drive to mimic two drives.

USE master
GO
IF EXISTS (
        SELECT *
        FROM sys.databases
        WHERE NAME = 'ObjectsDemo'
        )
    ALTER DATABASE ObjectsDemo SET  SINGLE_USER WITH ROLLBACK IMMEDIATE;
    DROP DATABASE ObjectsDemo
GO

CREATE DATABASE ObjectsDemo
GO

ALTER DATABASE ObjectsDemo
ADD filegroup ObjectsDemo_mod CONTAINS memory_optimized_data
GO

-- Add Files
ALTER DATABASE ObjectsDemo
ADD FILE (
    NAME = 'ObjectsDemo_mod_W'
    ,filename = 'c:\dataHK\ObjectsDemo_W'
    ) TO filegroup ObjectsDemo_mod
GO

-- Add Files
ALTER DATABASE ObjectsDemo
ADD FILE (
    NAME = 'ObjectsDemo_mod_X'
    ,filename = 'c:\dataHK\ObjectsDemo_X'
    ) TO filegroup ObjectsDemo_mod
GO

So, I have two folders “ObjectsDemo_W” and “ObjectsDemo_X” to represent W and X drives. Once we create a in-memory table, we should see checkpoint file pairs (CFP) created.
USE ObjectsDemo
GO

CREATE TABLE dbo.t1 (
    c1 INT NOT NULL PRIMARY KEY NONCLUSTERED
    ,c2 INT
    )
    WITH (memory_optimized = ON)
GO

Let’s have a look at folders now.


One folder (Drive W) contains only data files (pre-created at 16 MB each) and another folder (Drive X) contains only delta file (pre-created at 1 MB each). That would not put uniform load on the both folders. The files are placed in this fashion because data and delta files are created in container into round-robin fashion

Here is the tip: Since we have even number of drives, we should create two folders on each drive and place files in 4 containers instead of 2 containers. We need to remember that first two containers should be from same drive.

use master
go
IF EXISTS (
        SELECT *
        FROM sys.databases
        WHERE NAME = 'ObjectsDemo'
        )
    ALTER DATABASE ObjectsDemo SET  SINGLE_USER WITH ROLLBACK IMMEDIATE;
    DROP DATABASE ObjectsDemo
GO

CREATE DATABASE ObjectsDemo
GO

ALTER DATABASE ObjectsDemo
ADD filegroup ObjectsDemo_mod CONTAINS memory_optimized_data
GO

-- Add Files
ALTER DATABASE ObjectsDemo
ADD FILE (
    NAME = 'ObjectsDemo_mod_W1'
    ,filename = 'c:\dataHK\ObjectsDemo_W1'
    ) TO filegroup ObjectsDemo_mod
GO

-- Add Files
ALTER DATABASE ObjectsDemo
ADD FILE (
    NAME = 'ObjectsDemo_mod_W2'
    ,filename = 'c:\dataHK\ObjectsDemo_W2'
    ) TO filegroup ObjectsDemo_mod
GO

-- Add Files
ALTER DATABASE ObjectsDemo
ADD FILE (
    NAME = 'ObjectsDemo_mod_X1'
    ,filename = 'c:\dataHK\ObjectsDemo_X1'
    ) TO filegroup ObjectsDemo_mod
GO

-- Add Files
ALTER DATABASE ObjectsDemo
ADD FILE (
    NAME = 'ObjectsDemo_mod_X2'
    ,filename = 'c:\dataHK\ObjectsDemo_X2'
    ) TO filegroup ObjectsDemo_mod
GO


W1 and W2 are two container for mimicking two folder on W and same for X as well. Now, if we create a table, due to round robin, we should see below.


Now we have DATA file distributed and should have better usage of both driver. What you should do if you have ODD number of drives? Well, nothing because of round robin, data and delta files would be distributed automatically.

Bottom line: If you have plans to create file stream containers on odd number of drives, create them using trick mentioned above. If you have even number of containers then no special consideration.

Hope you have learned something new today.

  • Cheers,
  • Balmukund Lakhani
  • Twitter @blakhani
  • Author: SQL Server 2012 AlwaysOnPaperback, Kindle
  • Advertisements

    Posted in A - Z Series, Hekaton Series, In Memory OLTP, In-Memory OLTP, SQL Server 2014 | Tagged: , , , , , , , , , , , | 2 Comments »

    A-Z of In-Memory OLTP : Checkpoint – Part 2

    Posted by blakhani on December 24, 2013


    If you are reading this post before part 1, I would like you to read part 1 so that you have context of what you are reading. In part 1, we have seen demo and usage of DATA files. In this blog I am going to talk about DELTA files.

    As we saw earlier each DELTA file is paired with DATA file. I must call out that DATA and DELTA files are not related to a single table but they cover a transaction range (In fact, this was a question asked by one of the reader, Manoj (Blog) in my last post). In in-memory world, when a record is deleted from the table, it’s not removed from the DATA file but a identifier is inserted in DELTA file. This would tell SQL Server that during loading of the data (startup of database), don’t load this particular row in memory as it’s deleted. Now, imagine a situation when we are doing an update to a row.

    Let’s see this theory in action. I have used same script to populate the data and here is the position where we left in last blog. Here is the query

    Select count(*) from MyFirstMemporyOptimizedTable
    go
    SELECT internal_storage_slot,
           file_id,
           pair_file_id,
           file_type_desc,
           file_size_in_bytes / 1024.0 / 1024.0      [File Size in MB],
           file_size_used_in_bytes / 1024.0 / 1024.0 [File Used in MB],
           total_bytes / 1024.0 / 1024.0             [Total MB],
           inserted_row_count ,
           deleted_row_count
    FROM   sys.dm_db_xtp_checkpoint_files
    WHERE  total_bytes > 0        -- non zero size
    and       internal_storage_slot is not null
    order by 1 desc





    Now, I am going to delete one third of the rows and make sure to fire a manual checkpoint.

    Delete from MyFirstMemporyOptimizedTable
    where iID%3 = 0
    go
    checkpoint
    go

    ----------------------
    (3334 row(s) affected)

    If we run the old query again.


    Here comes the DELTA files. Note that the internal_slot_id is zero for one pair and one for new DATA file.  After sometime, if we run the exact same query again, we would see a different output.


    If we look at the file_id, its changed from the previous screenshot. It sounds like a checkpoint has fired by itself and has removed the reference of DELTA file. Current DATA file shows 6668 rows which is exact rows in table. There is no need of DELTA file here.

    Now, I am going to fire an update statement and modify all the rows and see the effect.

    update MyFirstMemporyOptimizedTable
    set vFName = 'www.ExtremeExperts.com'
    where vFName = 'ExtremeExperts.com'
    go
    checkpoint
    go



    ——————

    (3334 row(s) affected)



    This matches with the theory that UPDATE is split into DELETE and INSERT. We Updated 3334 rows, which caused append of 3334 rows into DELTA file and append of 3334 rows to DATA file.

    In above, “after update” we can see three DATA files and one DELTA file. Let’s fire one more query to understand the transaction range. Here is the query

    SELECT internal_storage_slot,
           file_id,
           pair_file_id,
           file_type_desc,
           inserted_row_count ,
           deleted_row_count,
           transaction_id_lower_bound,
           transaction_id_upper_bound
    FROM   sys.dm_db_xtp_checkpoint_files
    WHERE  total_bytes > 0        -- non zero size
    and       internal_storage_slot is not null
    order by 1 desc





    Each internal_storage_slot is for a range of transaction. Lower bound and upper bound are matching for consecutive slots.

    It is important to recall that writing (appending to be precise) to DELTA and DATA file is NOT done by any user transaction but background checkpoint thread. In our tests we are firing manual checkpoint to see the immediate effect to learn which would not be the case in production server. The background thread, scans the log buffers (and if needed, transaction log file) to append to those files. As per Hekaton Whitepaper by Kalen, below are the steps done by checkpoint.

    1. All buffered writes are flushed to the data and delta files.

    2. A checkpoint inventory is constructed that includes descriptors for all files from the previous checkpoint plus any files added by the current checkpoint. The inventory is hardened to the transaction log.

    3. The location of the inventory is stored in the transaction log so that it is available at recovery time.

    Till, I wrote last few lines, another system process happened and here is the final output.


    We would discuss about merge process in later part of the series.

    Hope you have already downloaded SQL Server 2014 CTP2 and learning In-Memory OLTP (a.k.a. Hekaton) with me. If you haven’t yet, be sure to check out the SQL Server 2014 CTP2 so that you can follow this series and get your hands dirty.

  • Cheers,
  • Balmukund Lakhani
  • Twitter @blakhani
  • Author: SQL Server 2012 AlwaysOnPaperback, Kindle
  • Posted in A - Z Series, Hekaton Series, In Memory OLTP, In-Memory OLTP, SQL Server 2014 | Tagged: , , , , , , , , | 3 Comments »

    A-Z of In-Memory OLTP : Checkpoint – Part 1

    Posted by blakhani on December 19, 2013


    In today’s advance world, RAM is still volatile. Once you pull the power plug out, all the content of RAM is flushed. Since we are talking about in-memory tables, what would happen to data in tables? If we have defined a table as durable (SCHEMA_AND_DATA) in SQL Server, durability has to be maintained. During recovery of the database (also known as crash recovery), all the content should come back. To achieve this, SQL Server does logging into transaction log and writes checkpoint for in-memory tables.

    If you are a SQL Server DBA and worked with earlier versions of SQL, checkpoint is definitely known to you. You can read more about earlier version of checkpoint in books online. In short, checkpoint is a process which writes dirty pages from memory to data file. This is done to reduce the recovery time of the database during crash recovery. Checkpoint can be done by system thread based on recovery interval or triggered on demand when system is low on memory, or other operations such as log backup etc.

    “Similar” concept of checkpoint exists for In-Memory tables as well. I quoted similar because mechanism is different than the known checkpoint process for disk-based tables. To maintain durability of data for in-memory tables, SQL Server does logging of changes in transaction log (which is also different than disk based tables) and writes information during checkpoint. In this blog, we would try to understand the various things which happens during checkpoint. We should remember that transaction logging is sufficient to recover the data but if there is no checkpoint then we need to read complete transaction log during crash recovery, which would be inefficient. So, periodically checkpoint is fired and data is dumped into checkpoint files. Now, during recovery, we recover from checkpoint and replay only that portion of transaction log which is after checkpoint.

    Checkpoint files are created into filegroup MEMORY_OPTIMIZED_DATA which is container for these files. During checkpoint, we try to use log buffer in memory to write information into checkpoint files. There are chances that log buffer is not having sufficient log blocks and then we would end-up in reading transaction log file. SQL Server uses FILESTREAM as underlying storage mechanism for checkpoint files. The checkpoint information is written into the disk by checkpoint streams, which comes in two flavors:

    • DATA streams:
      • These file are approximately 128 MB in size.
      • They contain only inserted rows of the table in the given timestamp range.
    • DELTA streams:
      • These are paired (1:1) with DATA files.
      • Size of these file is not constant.
      • Store the deleted rows with IDs.

    Note that both files are “append only” files which means the IO would always be sequential. As soon as table is created, DATA files are pre-allocated with 128 MB size. DATA and DELTA files form a pair for a timestamp range. Once current DATA file becomes full, SQL Server would switch to new DATA file.

    Enough of theory? Let’s see a checkpoint in action.

    For demo purpose, I am creating table in the database which is having wide row. Here is the complete script.

    -- Create database having container C:\IMO_Database\SQLSeverHelp_IMO_dir
    CREATE DATABASE SQLSeverHelp_IMO
        ON PRIMARY (
        NAME = [SQLSeverHelp_IMO_data]
        ,FILENAME = 'C:\IMO_Database\SQLSeverHelp_IMO.mdf'
        )

        ,FILEGROUP [SQLSeverHelp_IMO_FG] CONTAINS MEMORY_OPTIMIZED_DATA (
        NAME = [SQLSeverHelp_IMO_dir]
        ,FILENAME = 'C:\IMO_Database\SQLSeverHelp_IMO_dir'
        )

        LOG ON (
        NAME = [SQLSeverHelp_IMO_log]
        ,Filename = 'C:\IMO_Database\SQLSeverHelp_IMO_log.ldf'
        )
    GO


    -- Create In-Memory table
    Use SQLSeverHelp_IMO
    GO
    CREATE TABLE MyFirstMemporyOptimizedTable
    (
    iID INT NOT NULL PRIMARY KEY NONCLUSTERED HASH WITH (BUCKET_COUNT = 100000),
    vFName CHAR(4000) NOT NULL,
    vLName CHAR(4000) NOT NULL
    ) WITH (MEMORY_OPTIMIZED = ON, DURABILITY = SCHEMA_AND_DATA)
    GO

    As soon as table is created, we would see DATA and DELTA file in the container. We can use DMV sys.dm_db_xtp_checkpoint_files to see the information. Let’s first run a very basic query to understand the files.

    SELECT file_id,
           pair_file_id,
           file_type_desc,
           is_active
    FROM   sys.dm_db_xtp_checkpoint_files
    ORDER  BY is_active DESC;

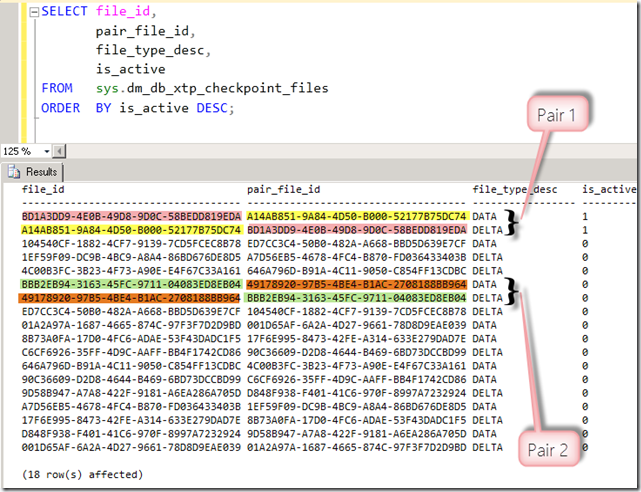

    Here is the output with some highlights. I have put the same color for the matching file_id with pair_file_id column for clarity.


    As we can see in output, DATA and DELTA files are having pair. I have highlighted only two pairs but if you look carefully, all files are paired. Note that the number of files created is a function of number of CPU cores on the system. My machine has 8 logical CPU so I am seeing 9 pairs. Is_Active column represents whether the files is currently in use or not. Another way to find out paired files is to use column called internal_storage_slot. Only those files which are having not null slot would be used by checkpoint.

    SELECT internal_storage_slot,
           file_id,
           pair_file_id,
           file_type_desc
    FROM   sys.dm_db_xtp_checkpoint_files
    WHERE  internal_storage_slot is NOT NULL

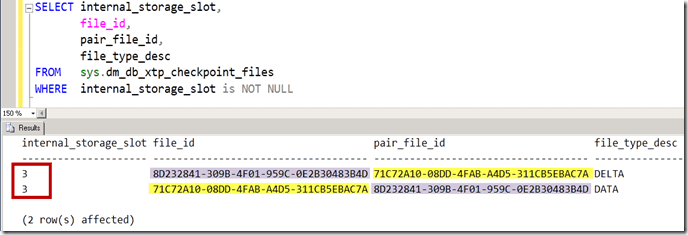

    Here is the output. Two files having same slot form a pair of DATA-DELTA (slot 3 in below screenshot).

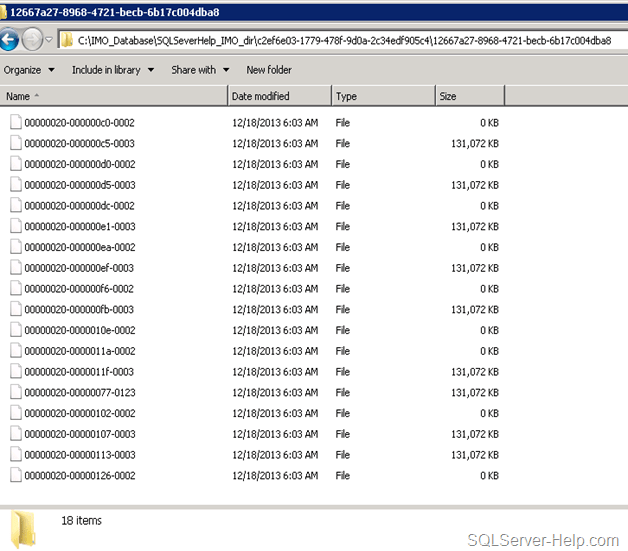

    Here is how the physical files on operating system look like:

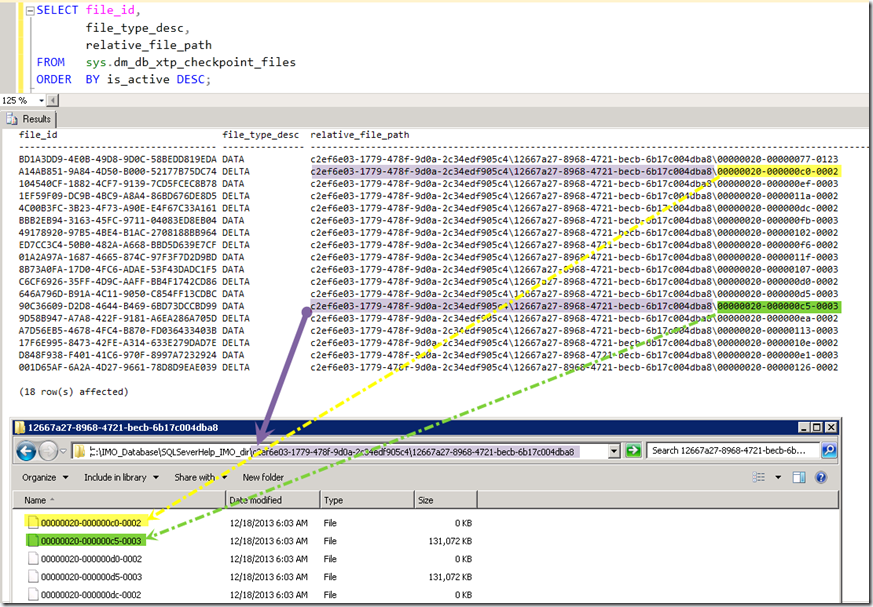

    Now, you may ask – how would I associate the file in the OS with the file_id and pair_file_Id column in sys.dm_db_xtp_checkpoint_files? Let’s use other columns of DMV to explore that information.


    I have tried to make the picture self-explanatory. Highlight with the same color are the matching texts.

    Now, lets try and check what happens when we insert some rows in the table. As we discussed earlier, DATA file would contain the rows which are inserted and DELTA file would have entries of deleted rows. I have used below script to load ~10K rows into the table.

    DECLARE @counter INT
    SET @counter = 0
    WHILE @counter <= 10000
      BEGIN
          INSERT INTO myfirstmemporyoptimizedtable
          VALUES      (@counter,
                       'SQLServer-Help.com',
                       'Balmukund Lakhani'),
                      (@counter + 1,
                       'ExtremeExperts.com',
                       'Vinod Kumar M'),
                      (@counter + 2,
                       'SQLAuthority.com',
                       'Pinal Dave')

          SET @counter = @counter + 3
      END

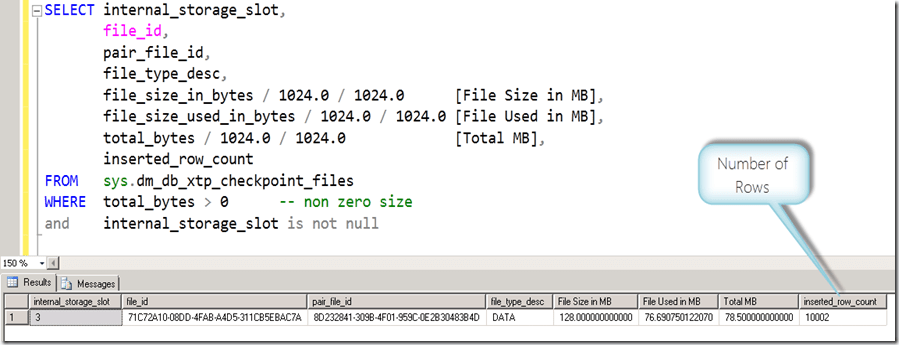

    Now, Let’s go ahead and query the DMV again to see if we have something interesting! But Wait! We don’t know if checkpoint has automatically fired or not. So before running the query, I fired manual checkpoint via “CHECKPOINT” command in management studio.

    SELECT internal_storage_slot,
           file_id,
           pair_file_id,
           file_type_desc,
           file_size_in_bytes / 1024.0 / 1024.0      [File Size in MB],
           file_size_used_in_bytes / 1024.0 / 1024.0 [File Used in MB],
           total_bytes / 1024.0 / 1024.0             [Total MB],
           inserted_row_count
     FROM   sys.dm_db_xtp_checkpoint_files
     WHERE  total_bytes > 0        -- non zero size
     and       internal_storage_slot is not null

    As we can see that at this point only one DATA file is having non-zero size and number of rows shown are 10002, which were inserted earlier.

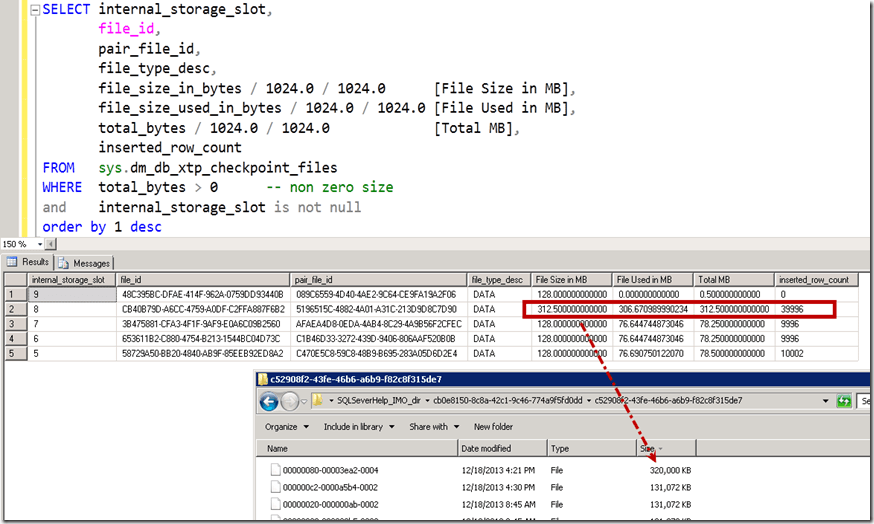

    As we insert more and more rows, data would be accumulated in DATA file and once its full, next file would be opened used and current file becomes read-only. Please remember that 128 MB is NOT the limit of the checkpoint DATA file. A transaction can’t span across two DATA files, so a bigger transaction could cause a file to go beyond 128 MB size. For demo purposes, instead of 10K rows, I have inserted ~40K rows in one transaction.


    If you are wondering why we are not seeing any DELTA file in any of the query output then recall that DELTA file would contain the DELETEed rows identifier and so far I have been doing only INSERTs. To give you some time to grasp information in this blog, I would stop here and we would discuss other aspects of checkpoint in next blog for this A-Z series.

    In case you have any question, post them in comment section and I would be happy to answer them.

  • Cheers,
  • Balmukund Lakhani
  • Twitter @blakhani
  • Author: SQL Server 2012 AlwaysOnPaperback, Kindle
  • Posted in Hekaton Series, In Memory OLTP, In-Memory OLTP, SQL Server 2014 | Tagged: , , , , , , , , | 11 Comments »
