Step by Step – Configuring SQL Server 2012 AlwaysOn in Windows 7 Virtual Environment (Part 1)

Posted by blakhani on May 3, 2012


I have been demonstrating AlwaysOn feature to various audiences on various forums (TechEd, SQL Saturday, Virtual TechDays etc.). I have been using Windows Server 2008 R2 with Hyper-V to create multiple machine and demonstrate the feature. Someone asked me if he can do the same thing using his Windows 7 laptop? I tried looking at virtualization techniques available on Windows 7 and I found that it should be possible. I have tried to make it as descriptive as possible with step by step screenshots to configure whole setup.This topic would be a multipart series.

  1. Configure Windows 7 to use Virtualization and Configure three machines (One domain controller, two member servers). Also configure networking between them.
  2. Create Domain and configure the machines to make sure they are able to talk to each other.
  3. Install SQL Server 2012 on the servers.
  4. Configure AlwaysOn.

First download Windows Virtual PC on Windows 7 machine. Go to http://www.microsoft.com/windows/virtual-pc/download.aspx and choose below option. I am not going to Install Windows XP mode.

01_VPC

One clicked, choose your platform and language and click on download button.

02_VPC

This would install Windows Update to enable Virtual PC

03_Windows Installer



Restart the machine and you should be able to see below under "Start” > “Programs” > “Windows Virtual PC”

04_Windows Virual PC Shortcut

Next step would be to download the Virtual Hard Disk (a.k.a. VHD) file which I can use to configure my machine. Note that You need to use 32 bit images to make this work. Here is the link to download Windows Server 2008 images http://www.microsoft.com/en-us/download/details.aspx?id=14527 (Windows Server 2008 Enterprise Edition x86 (Full Install) VHD)

There are three parts which you need to download and then extract to user by Virtual PC. It would look like below.

05_Downloaded VHD

Double Click on the File and Extract the data into “C:\VHDs\DC” folder as shown below:

06_Extract

Once extraction is complete, make three copies of the vhd (Windows2008Fullx86Ent) file and keep them in separate folders as shown below. [I am showing only two, same exists for Srv2 also]

07_Copies

Lets add the machine to Virtual PC. Open the UI from "Start” > “Programs” > “Windows Virtual PC” > “Windows Virtual PC” and choose “Create virtual machine”

08_Create Machine

Follow the wizard and create DC

09_Create Machine1

10_Create Machine_Mem

11_Create Machine_Disk

One done, lets go to network setting and choose “Internal Network” This is because I don’t want to create domain controller in my office domain network.

Right Click on DC and choose “Settings”

12_Setting

Go to Networking option and choose “Internal Network”

13_Setting_Network

Now start the first machine and make sure we are able to log in.

14_DC_Startup

You need to follow few steps which are pretty self-explanatory. It would also as you to set machine name (I have given name as DC) new password for Administrator. Once you are done with that, this is what you should see 🙂

15_DC_LoggedIn

As homework, before moving to second part, you need to do the same thing with two more machines and here is what you should see in Windows Virtual PC.

16_Three Machines

See you at next part of Series!

Hope this would help someone in the world!

Cheers,
Balmukund Lakhani
Twitter @blakhani

Posted in AlwaysOn, Denali, Images, Installation, Installation Guide, Introduction, screen shot, Screenshot, SQL Server 2012, Step by Step | 4 Comments »

Step by Step: Installing SQL Server 2012 RC 0

Posted by blakhani on November 30, 2011


For my upcoming internal session on contained database, I decided to install latest version of SQL Server 2012 (earlier known as SQL Server “Denali”) to show the demo. Here are the steps with screenshots to help someone who is doing the same. So, here we go!

I have done this on my Hyper-V machine so that I can always rollback. I have used SQL Server 2012 RC0 (Release Candidate 0) build. While writing this post, RC0 was the latest version available and can be downloaded from here

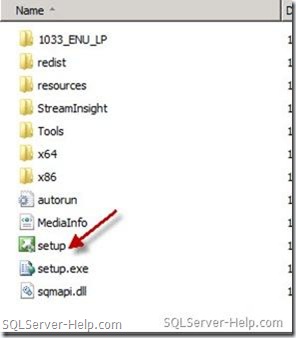

  • Copied the media to local machine, I prefer this to avoid any network hiccups which might cause my setup to fail. Now run Setup.exe

Choose Setup.exe

  • After clicking you should see “SQL Server Installation Center”. On left menu, click on “Installation” and then click on “New SQL Server stand-alone installation or add features to an existing installation”

02_Setup

  • Once you click, you should see “Setup Support Rules” screen.

03_Setup

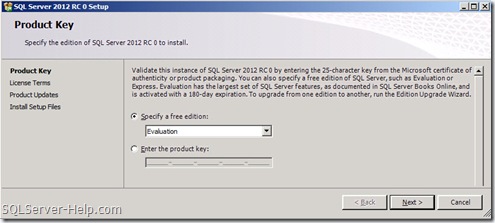

  • Hit OK and you should get “Product Key” Screen. Since I launched setup from Evaluation Media, it doesn’t populate Product Key. Hit Next.

04_Setup

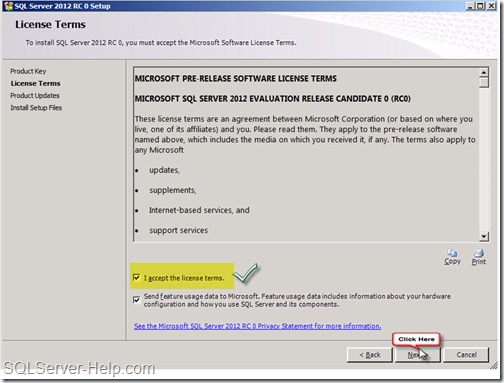

  • Next would be License Terms screen. Check the box “I accept the license terms.” and Next.

05_Setup

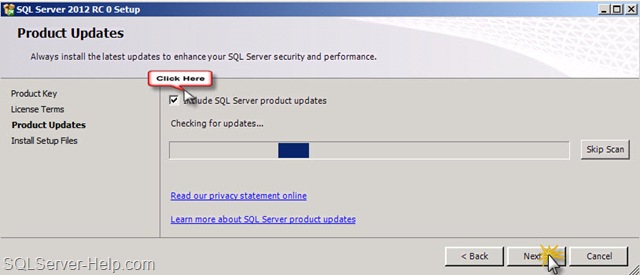

  • Next Screen is about auto patching of setup. Since I am using version which is not having any further updates, so I would uncheck the option and move forward. I would cover more about this feature later.

06_Setup

  • Hitting Next would install setup support files as shown below.

07_Setup

  • Next screen would just show the rules. Hit Next.

08_Setup

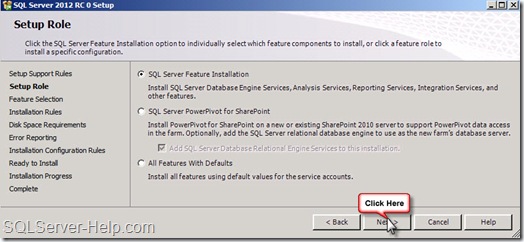

  • I have selected first option as I don’t play with SharePoint.

09_Setup

  • Normally I don’t click “Select All” but to get all screens, i have selected this. Notice the left menu getting changed based on your selection. Hit Next.

10_Setup

  • Hit Next

11_Setup

12_Setup

  • Summary of disk space. Hit Next.

13_Setup

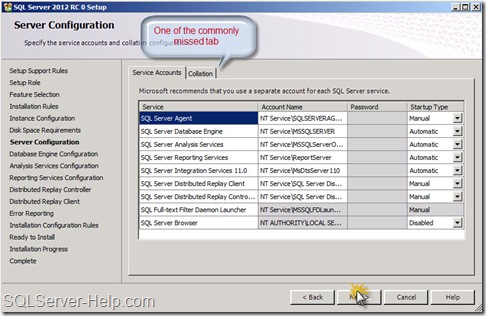

  • If you want to change service account, you can provide details and password. You can also specify “Startup Type”. Hit Next.

14_Setup

  • In this screen I am going with Mixed mode and given password. Also clicked on “Add Current User” to add logged on user as Sysadmin in SQL Server.

15_Setup

  • Please don’t ask question about SSAS. I have just hit next clicking on “Add Current User”.

16_Setup

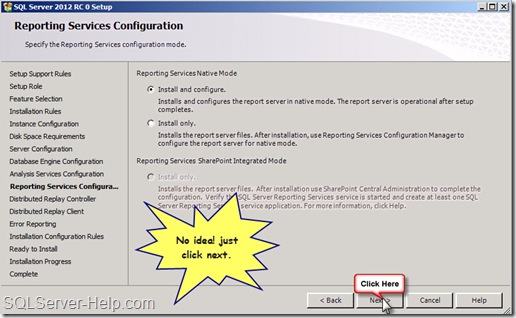

  • In “Reporting Services Configuration” screen, just hit next.

17_Setup

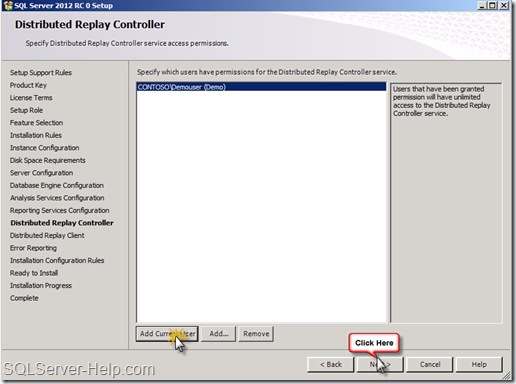

  • Next screen should be “Distributed Replay Controller”. I have just hit next clicking on “Add Current User”. I would cover this feature in detail in some later blog.

18_Setup

  • In “Distributed Replay Client”. I have entered some name as I don’t know what to enter here. I should be able to change this later (I think so). At this point I am yet to read more about this feature.

19_Setup

  • If you want us to provide feedback about setup and some watson failures, you can check the box and in “Error Reporting” screen and then hit next. I always check this because I know this is really useful to make product better.

20_Setup

  • Next screen would do validation about installation/system and may block you if one or more rules are failed.

21_Setup

  • Finally, the summary of all options selected so far. Very important information is Configuration File Path which can be used if you want to have automation. Remember that we don’t store any password in that file so you are safe!

22_Setup

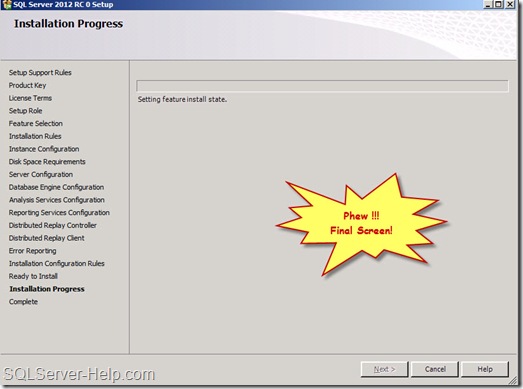

  • “Installation Progress” screen would show the actions being performed.

23_Setup

  • And here is the screen which you would all love to see.

25_Setup

That’s all for today. I would love to hear feedback from reader(s).

Hope this would help someone in the world!

Cheers,
Balmukund Lakhani
Twitter @blakhani
